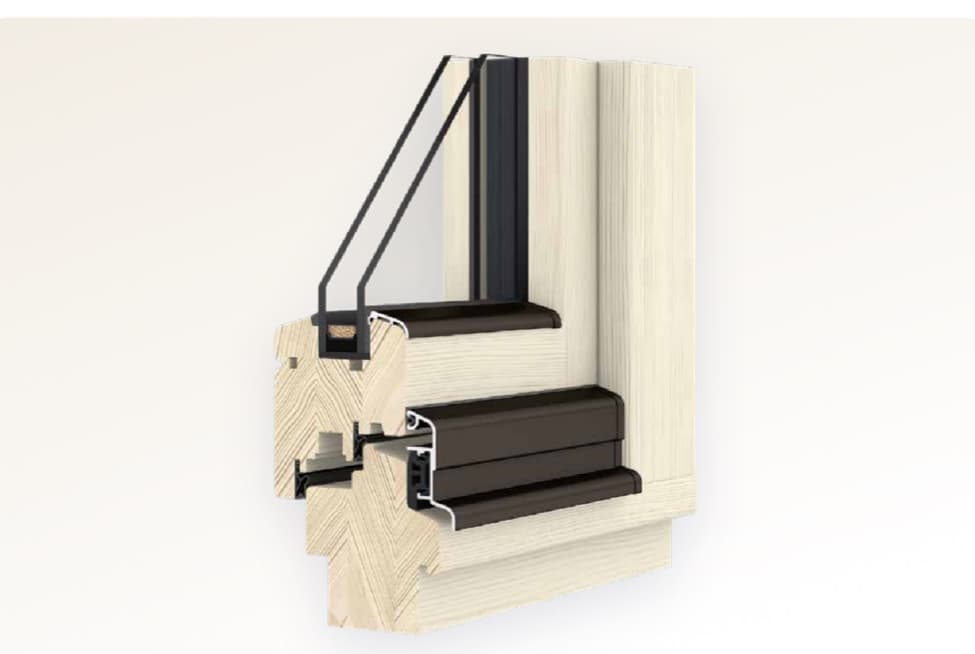

SOFTLINE 68
Timber
Data from the BO Fenster 2026 brochure. Uw refers to the complete window, Ug to the glazing. Calculated values depend on dimensions, glazing and options. Final specifications are provided in the quotation. Uw values calculated with a thermally insulating Swisspacer spacer.
68 mm
Profile depth
24–32 mm
Glazing thickness
2
Seals
Pine or meranti timber window with a 68 mm frame. Shapes and decorative elements can be tailored to the building, including heritage renovations subject to project requirements.
This system is part of the solutions used by BO Fenster. The final choice always depends on measurements, the building, performance goals and installation type.
Colors and finishes
Finishes
- Opaque paint or stain
- Four protective coats
- Confirm colours using samples
Technical specifications and documentation
Detailed technical parameters
- Reference Uw / Ug
- 1,27 / 1,1 W/m²K
- Timber species
- Laminated pine or meranti
- Hardware
- MACO MULTI-MATIC
Data from the BO Fenster 2026 brochure. Uw refers to the complete window, Ug to the glazing. Calculated values depend on dimensions, glazing and options. Final specifications are provided in the quotation. Uw values calculated with a thermally insulating Swisspacer spacer.
Technical drawings
Other systems we use
Compare the same dimensions and glazing. Performance depends on configuration; figures from different systems are not always directly comparable.
Timber windows

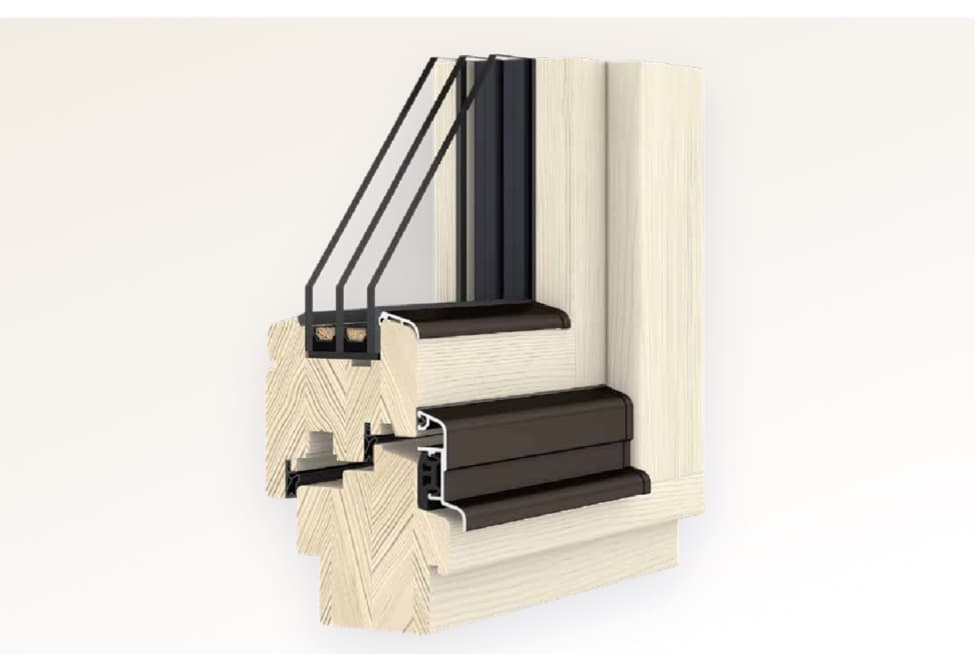

SOFTLINE 78
Timber
- Profile depth
- 78 mm
- Glazing thickness
- 24–44 mm
- Seals
- 2
Figures depend on configuration. Conditions on the detail page.
Explore this system
Timber windows

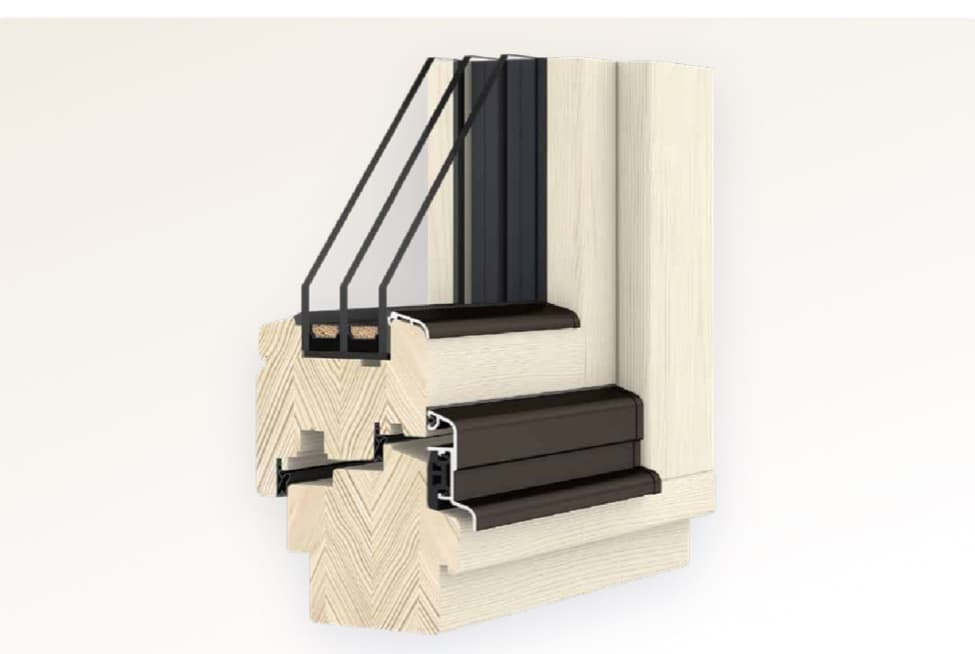

SOFTLINE 88
Timber
- Profile depth
- 88 mm
- Glazing thickness
- 32–54 mm
- Seals
- 2
Figures depend on configuration. Conditions on the detail page.
Explore this systemCould this system fit your project?
Request a free, no-obligation quote. BO Fenster checks the technical requirements and recommends the right solution.
