IGLO ENERGY CLASSIC
PVC · 82 mm
Data from the BO Fenster 2026 brochure. Uw refers to the complete window, Ug to the glazing. Calculated values depend on dimensions, glazing and options. Final specifications are provided in the quotation.
82 mm
Profile depth
7
Chambers
3
Seals

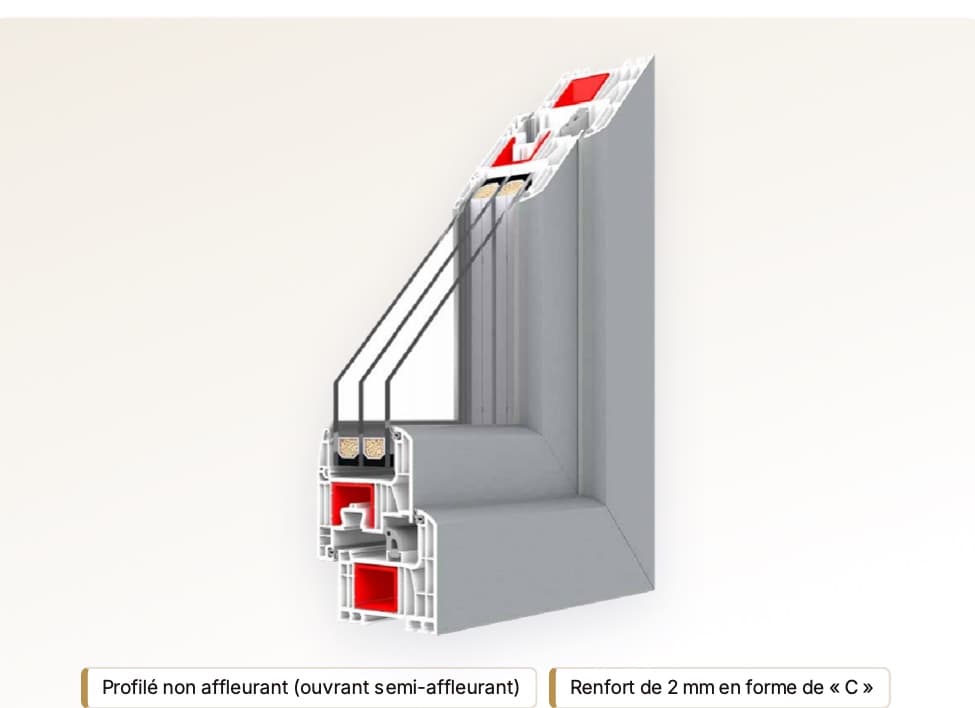

82 mm profile with seven chambers and three seals, including an EPDM foam centre seal. For projects requiring enhanced insulation.
This system is part of the solutions used by BO Fenster. The final choice always depends on measurements, the building, performance goals and installation type.
Colors and finishes
Finishes
- White
- Solid, matt, metallic and woodgrain films depending on system
Technical specifications and documentation
Detailed technical parameters
- Glazing thickness
- 24–52 mm
- Reference Uw / Ug
- 0,73 / 0,5 W/m²K
- Sound insulation depending on glazing
- 36–42 dB
- Profile class
- A
- Hardware
- MACO
Data from the BO Fenster 2026 brochure. Uw refers to the complete window, Ug to the glazing. Calculated values depend on dimensions, glazing and options. Final specifications are provided in the quotation.
Technical drawings
Handles (8)
Spacers (7)
Other systems we use
Compare the same dimensions and glazing. Performance depends on configuration; figures from different systems are not always directly comparable.
PVC windows
IGLO 5 CLASSIC
PVC · 70 mm
- Profile depth
- 70 mm
- Chambers
- 5
- Seals
- 2
Figures depend on configuration. Conditions on the detail page.
Explore this system
PVC windows
IDEAL NEO MD
PVC · 76 mm
- Profile depth
- 76 mm
- Chambers
- 6
- Seals
- 3
Figures depend on configuration. Conditions on the detail page.
Explore this system
PVC windows
IDEAL NEO MD-FS
PVC · 76 mm
- Profile depth
- 76 mm
- Chambers
- 6
- Seals
- 3
Figures depend on configuration. Conditions on the detail page.
