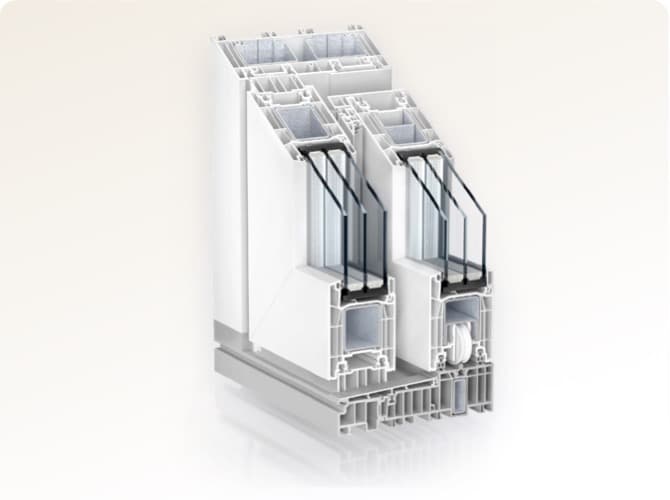

76 MM PREMIDOOR & PREMIDOOR LUX
PVC lift-and-slide door · 76 mm system
Lift-and-slide door available as the classic PremiDoor or slim-profile Lux version. It combines large dimensions, an optional flat threshold, sound insulation and security up to RC2.
This system is part of the solutions used by BO Fenster. The final choice always depends on measurements, the building, performance goals and installation type.
6,50 m
Maximum width
2,60 m
Maximum height
Uw 0,76
Triple glazing Ug 0.5
Why we use this system
- Classic PremiDoor or PremiDoor Lux with 11% more daylight
- Optional motorisation and flat threshold
- Burglary resistance up to RC2 (WK2)
Colors and finishes
PVC finishes
- White, brown or anthracite depending on the system
- Solid, matt, metallic and woodgrain films
- Black or grey seals depending on configuration
- AluClip exterior aluminium cladding
Detailed technical parameters
- Maximum dimensions
- 6.50 × 2.60 m
- Glazing
- Double or triple glazing up to 50 mm
- Sound insulation
- Up to 42 dB
- Thermal insulation
- Uw up to 1.2 (Ug 1.1) or 0.76 W/m²K (Ug 0.5)
- Security
- Up to RC2 (WK2)
Optimum performance depends on configuration. Dimensions, performance levels and options are not automatically cumulative.
Technical drawings
Handles
Spacers
